Two-flavour soft serve ice cream machine with twist option for high output production

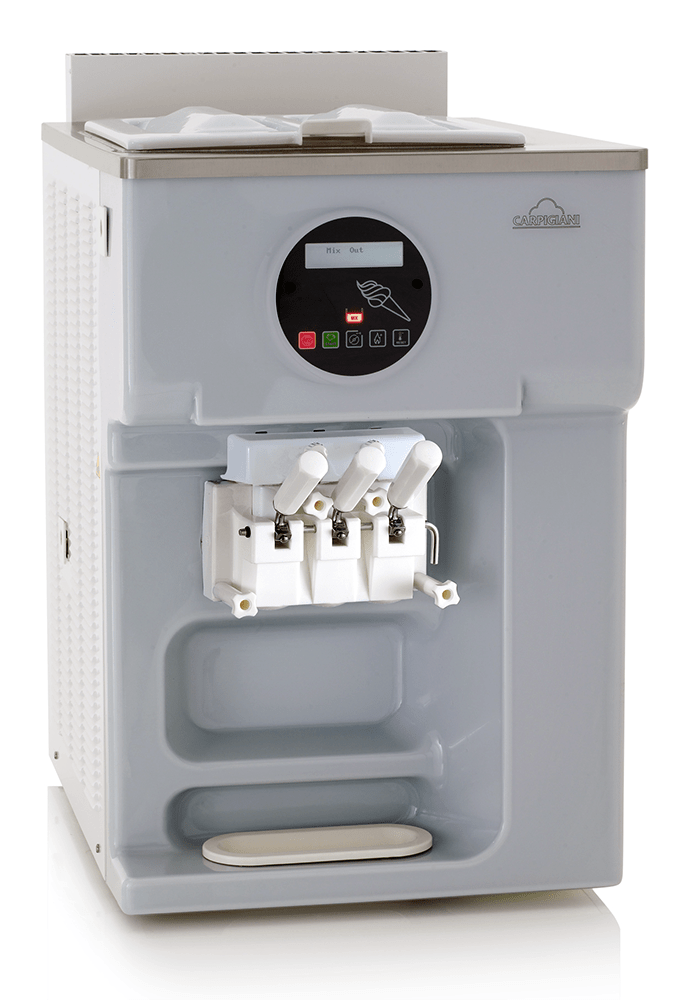

Carpigiani's 193-BAR is a countertop soft serve ice cream machine for two flavours with a twist option. It is available in 5 configurations: gravity-fed or pump-fed; air-cooled or water-cooled; 1-phase or 3-phase. The gravity-fed models have a 19-quart (18-litre) hopper while the pump models have a 13-quart (12.3-litre) hopper.

It has a consistency control system for measuring viscosity and quality control. It has the lowest number of parts to clean when compared to similar models in the industry, plus a R449A refrigerant and NSF certification.

The machine's standby mode keeps products in the freezing cylinder's temperature in the safe range. It's fed from the back of the cylinder, meaning priming is not needed. There are also audible signals for when a refill is needed.

This item comes with a 1-year parts warranty and 90-day labour warranty.

Features

Double flavour with twist option model for high output production
Consistency control technology system regulates refrigeration
Product is fed from rear of cylinder eliminating need to prime
Least number of components to clean compared to similar models in the industry
Unique cylinder construction delivers better results
Online monitoring and diagnosis on a tablet, phone, or PC
Standby mode maintains safe product temperatures in the freezing cylinder
R449A refrigerant
Audible signal alerts when refill is needed

Specs

Brand Carpigiani
Electrical 208-230V/60Hz
Refrigerant R449A
Certification NSF
Shipping Weight 485 lb

Model	Feed	Cooling	Electrical Phase
193-BAR-G-AC-1PH	Gravity	Air	1
193-BAR-G-AC-3PH	Gravity	Air	3
193-BAR-P-AC-1PH	Pump	Air	1
193-BAR-P-AC-3PH	Pump	Air	3
193-BAR-P-WC-1PH	Pump	Water	1

Model	Hopper Size	Volume	Dimensions (WDH)
193-BAR-G-AC-1PH	19 Qt. (18 L)	30.7 Cu. Ft.	21.7" x 34.4" x 35.5"
193-BAR-G-AC-3PH	19 Qt. (18 L)	30.7 Cu. Ft.	21.7" x 34.4" x 35.5"
193-BAR-P-AC-1PH	13 Qt. (12.3 L)	30 Cu. Ft.	21.7" x 34.7" x 35.5"
193-BAR-P-AC-3PH	13 Qt. (12.3 L)	30 Cu. Ft.	21.7" x 34.7" x 35.5"
193-BAR-P-WC-1PH	13 Qt. (12.3 L)	30 Cu. Ft.	21.7" x 34.7" x 35.5"

Carpigiani 193-BAR - Twin Twist Soft Serve Machine - 30 Litre Output/Hour

Feed, Cooling & Electrical: Gravity Feed, Air Cooling & 1 Phase
